SeekBar with Customization | Android Studio | Java

 SeekBar

A SeekBar widget is an extension of the widget ProgressBar that adds a draggable thumb. The user can touch the thumb and drag right or left to change the current progress level or use the arrow keys to do the same. You may have seen photo editing apps having features to change the brightness level, blur level, and contrast level. They use SeekBar to change these options.

In this tutorial we will not only learn to use the SeekBar we will also learn how to customize for example its thumb size, color, and background.

>>Check For Kotlin<<

.

Simple SeekBar

Let's implement the Simple Seekbar without any customization and handle the progress change listener. I'm just showing progress in TextView, you can do whatever you want.

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="20dp"
    tools:context=".MainActivity">

    <TextView
        style="@style/TextAppearance.Material3.LabelLarge"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_above="@id/seekBar"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="20dp"
        android:text="Simple SeekBar" />

    <!--SeekBar-->
    <SeekBar
        android:id="@+id/seekBar"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:max="100"
        android:progress="30" />

    <TextView
        android:id="@+id/progressTv"
        style="@style/TextAppearance.Material3.LabelLarge"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/seekBar"
        android:text="30" />

    <TextView
        android:id="@+id/totalTv"
        style="@style/TextAppearance.Material3.LabelLarge"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/seekBar"
        android:layout_alignParentEnd="true"
        android:text="100" />

</RelativeLayout>

MainActivity.java

package com.technifysoft.myapplication;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.widget.SeekBar;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {

    private SeekBar seekBar;
    private TextView progressTv;
    private TextView totalTv;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        seekBar = findViewById(R.id.seekBar);
        progressTv = findViewById(R.id.progressTv);
        totalTv = findViewById(R.id.totalTv);

        seekBar.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {
            @Override
            public void onProgressChanged(SeekBar seekBar, int progress, boolean fromUser) {
                progressTv.setText("" + progress);
            }

            @Override
            public void onStartTrackingTouch(SeekBar seekBar) {

            }

            @Override
            public void onStopTrackingTouch(SeekBar seekBar) {

            }
        });

    }
}

Preview:

Custom SeekBar

Let's implement some customization like thumb size, color, and background. You can modify the customization according to your needs. Create 4 Drawable resource files in the drawable folder with the names seekbar_style.xml, seekbar_border_shadow.xml, seekbar_progress.xml, seekbar_custom_thumb.xml.

res/drawable/seekbar_style.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@android:id/background"
        android:drawable="@drawable/seekbar_border_shadow" />

    <item android:id="@android:id/progress">
        <clip android:drawable="@drawable/seekbar_progress" />
    </item>
</layer-list>

res/drawable/seekbar_border_shadow.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape>
            <corners android:radius="5dp" />
            <gradient
                android:angle="270"
                android:centerColor="#11000000"
                android:centerY="0.2"
                android:endColor="#11000000"
                android:startColor="#33000000"
                android:type="linear" />
        </shape>
    </item>
</layer-list>

res/drawable/seekbar_progress.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:id="@+id/progressshape">
        <clip>
            <shape android:shape="rectangle">
                <size android:height="5dp" />
                <corners android:radius="5dp" />
                <solid android:color="#000000" />
            </shape>
        </clip>
    </item>
</layer-list>

res/drawable/seekbar_custom_thumb.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape android:shape="oval">
            <solid android:color="#9C27B0" />
            <size
                android:width="27dp"
                android:height="27dp" />
        </shape>
    </item>
</layer-list>

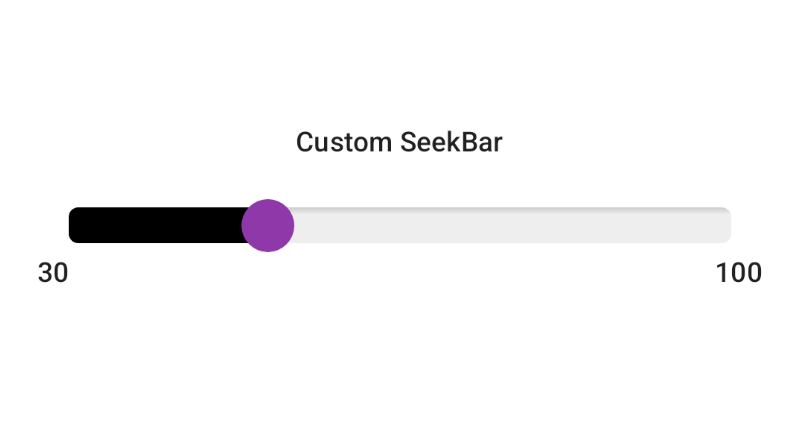

Preview:
